DH200F Battery Cabinet
AC-coupled 215kWh
DH200F is an AC-coupled battery cabinet for commercial and industrial energy storage. This all-in-one solution provides storage capacity of 215kWh with an integrated power conversion system (PCS) of 100kW. The battery cabinet is designed to increase the self-consumption of generated electricity as well as to profit from dynamic electricity prices. By adding an optional STS module the cabinet is suitable for off-grid operations, whereas with the optional MPPT module, the PV strings can be connected directly to the cabinet without the need of an outside inverter. DH200F is manufactured by Dyness for Autarco.
Available for authorized dealers to order in Autarco's Helios order system. Smaller capacities and battery-only cabinets suitable for use with our 3-phase hybrids will be available later this year.
![](/fileadmin/_processed_/e/e/csm_Frame__4__167333fe69.png)

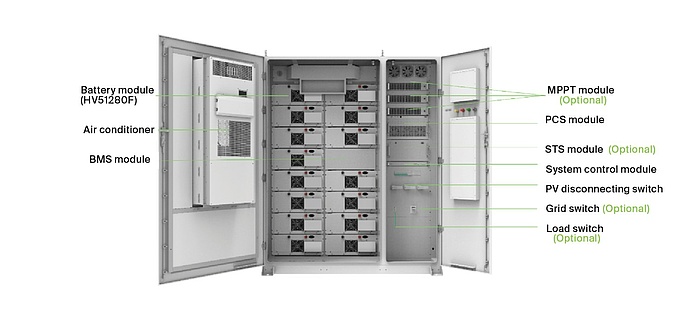

All-in-one integrated solution
![](/fileadmin/_processed_/b/d/csm_AUT_icons_97_b8388d3b31.png)
Optional direct PV connection and off-grid operation
![](/fileadmin/_processed_/6/1/csm_Frame__3__699dd47912.png)
Suitable for outdoor use
![](/fileadmin/_processed_/4/7/csm_quality_yellow-150x150_58560edbc3.png)
Integrated fire extinguishing system
![](/fileadmin/_processed_/9/e/csm_AUT_icons_57_4853d510ef.png)
Find datasheet here
Key features
6000 cycles
Parallel connection up to 12 cabinets (2.5MWh)
0.5 C charging rate
Suitable for three phase high voltage connection
Technical stuff
General characteristics
- Dimensions: 1850 x 1200 x 2250 mm
- Weight: 3000kg (to be confirmed)
- Battery type: LFP (LiFePO4)
- Coupled to: AC side
