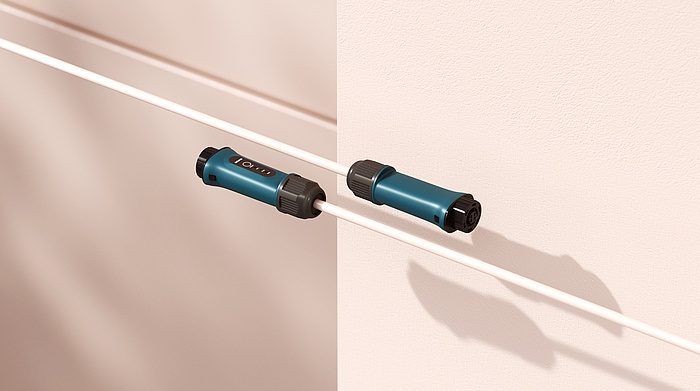

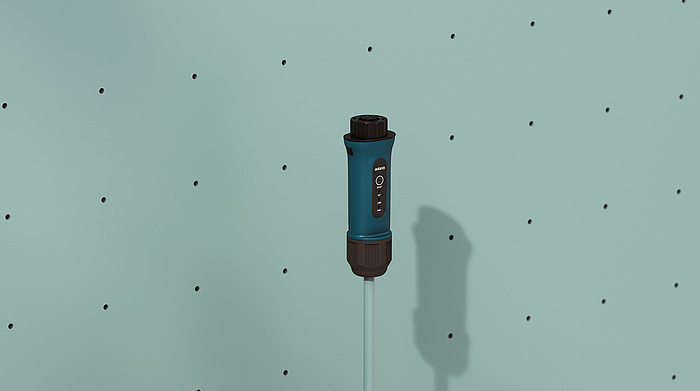

LAN Stick
Available as a 4-pin and a USB version
With the Autarco LAN Stick you can connect Autarco inverters to the internet ensuring data is succesfully submitted to Autarco for use in the Smart Asset Management service via a standard UTP cable. The LAN Stick is available as a 4-pin version and a USB version, depending on the Autarco inverter you are using.
Receiving the inverter messages are a crucial part of Autarco's ability to do pro-actively monitoring, offer installers a Smart Asset Management service and, most importantly, offer you an insured kWh guarantee.
View datasheet here
Easy to install
Encypted and using only European servers
Available as a 4-pin version and a USB version
Key features
Works with LAN en WiFi
Enables monitoring via the MyAutarco app
Questions?
We've got answers.
How do I log on to MyAutarco
You will receive an email after your installer registers your Autarco system. If you have forgotten your password you can request a new one via the button below.
Request new passwordWhat information can I find on MyAutarco?
On MyAutarco all relevant information regarding your PV system is made visibile. You will find the actual power of your system and the status of the inverters, but also the total yield per day, per month and since the installation of the system. If there is a kWh guarantee in place, your certificate(s) can be found here as well. Consumption Monitoring may also be available if this has been installed on your system
Can I see my monitoring on my mobile phone?
Yes, Autarco works with its portal MyAutarco, which is accessible from all devices.
Go to MyAutarcoI don't see any yield on MyAutarco, what's wrong?
There are several possibilities that may cause no yield to be shown on MyAutarco.
First, check whether the inverter is working properly. In normal daylight conditions the display should read “GENERATING” and both the red and the green LED above the display should be on. If this is not the case, there might be something wrong in the inverter. Please refer to inverter troubleshooting for further instructions.
If the inverter is generating properly, there is most probably a monitoring issue. First you should make sure your installer has registered your system correctly. MyAutarco will give an error message if this is not the case. If the registration is correct and/or MyAutarco has been showing data in the past but stopped doing so, please follow the next steps below.
WiFi – Do you have a new internet provider and/or router? If so, the monitoring should be reconnected, follow the WiFi installation manual to do so. If this is not the case, your WiFi signal may be to weak for the WiFi-stick to establish a stable connection. Your installer can help you solve this problem, it might be necessary to install a WiFi range extender.
LAN – Check whether the cable is connected properly, both in the monitoring stick and the router. If this is the case but there is still no data shown on MyAutarco, contact your installer for further assistance.
4G – The SIM card may have stopped sending data or the 4G-stick is out of range. Contact your installer for further assistance.
Technical stuff
Physical properties
LAN-Stick-D
- Dimensions:
4-pin: 125 x 50 x 41mm
USB: 130 x 50 x 41mm
- Weight:
4-pin: 100g
USB: 90g
Certified great
Our quality control process ensures that all of our hardware is designed and built to provide safe and reliable performance, all the time. That is why our products are back by the worlds leading safety institutions.
